Project Photos

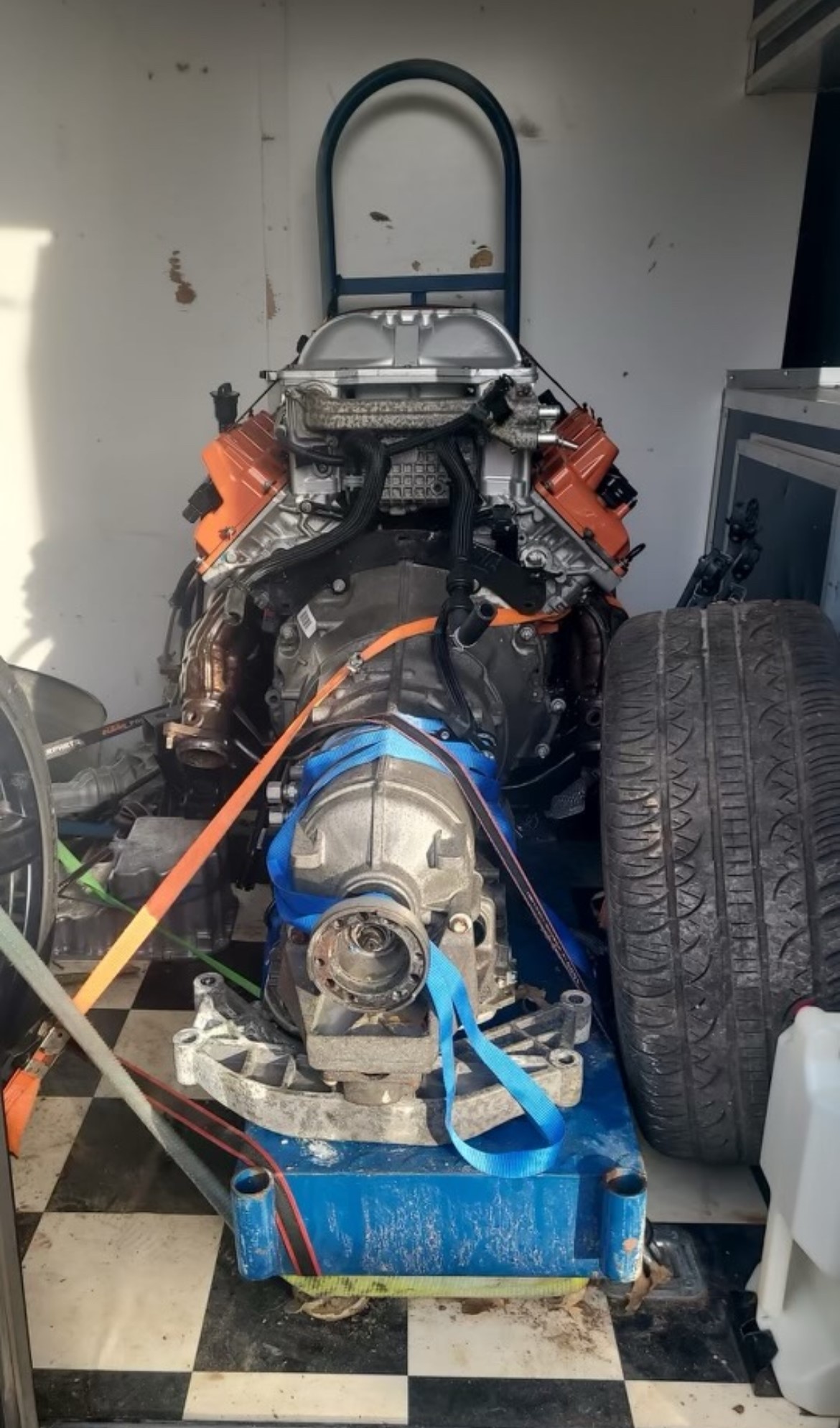

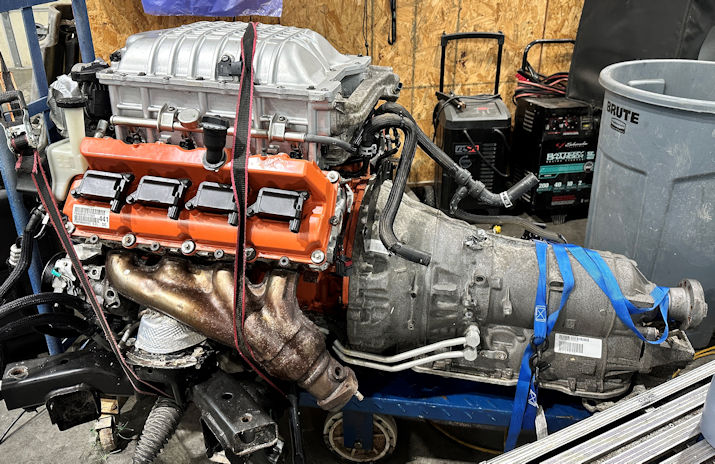

This page is simply a random collection of photos, somewhat in chronological order, collected during the project as the shops that are doing the work are all quite distant from where I live and I am dependent on others to get pictures. Here are the first two pictures I received of the motor and transmission after they arrived:

A car that is being worked on by someone.
A car engine is being worked on in the shop.

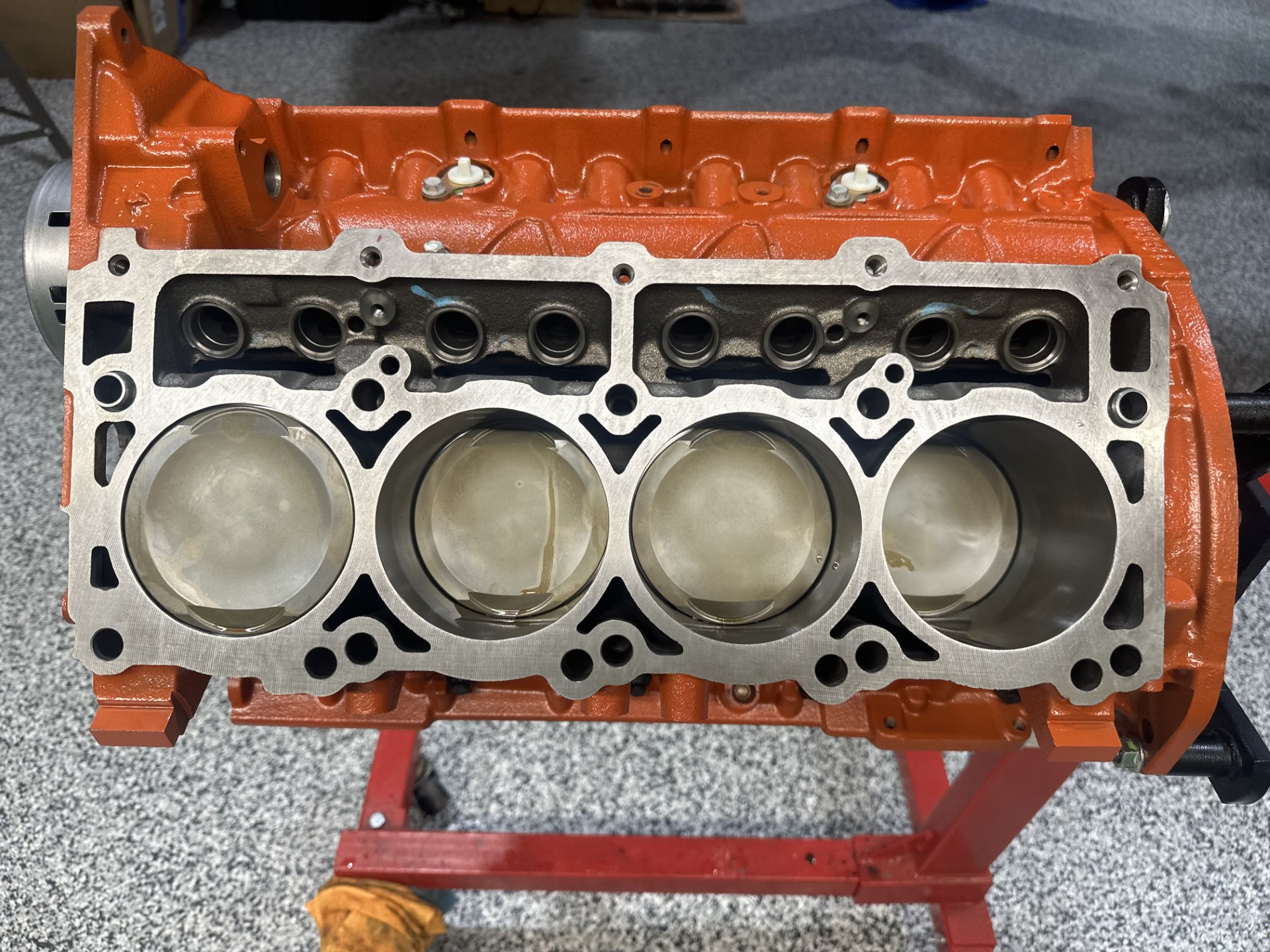

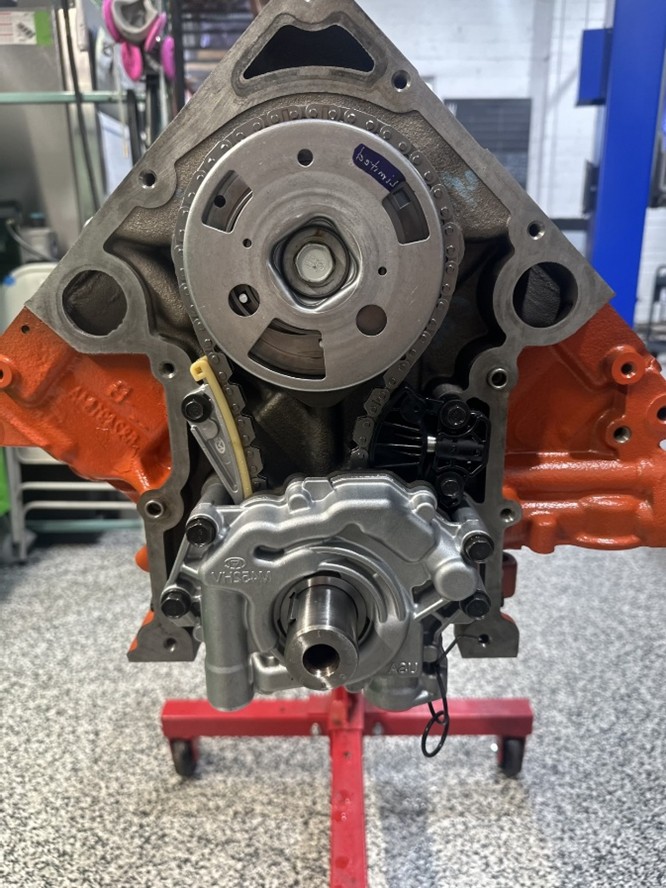

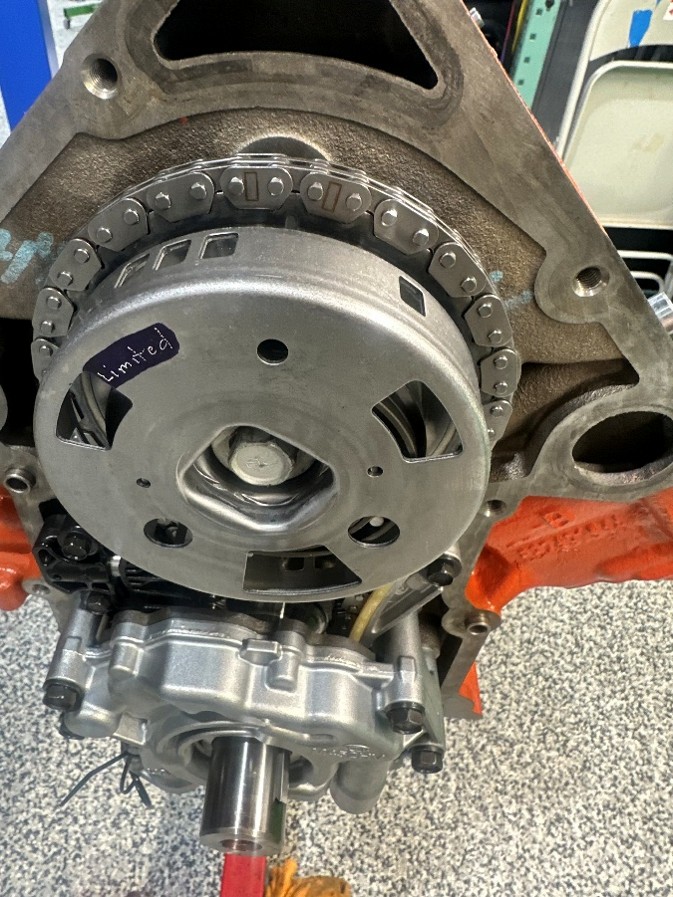

Here are pictures of the motor during disassembly and inspection. They are installing a new different cam shaft to get more horsepower.

A red engine block with four pistons and two valves.
A close up of the engine on a stand
A close up of the engine and gear box

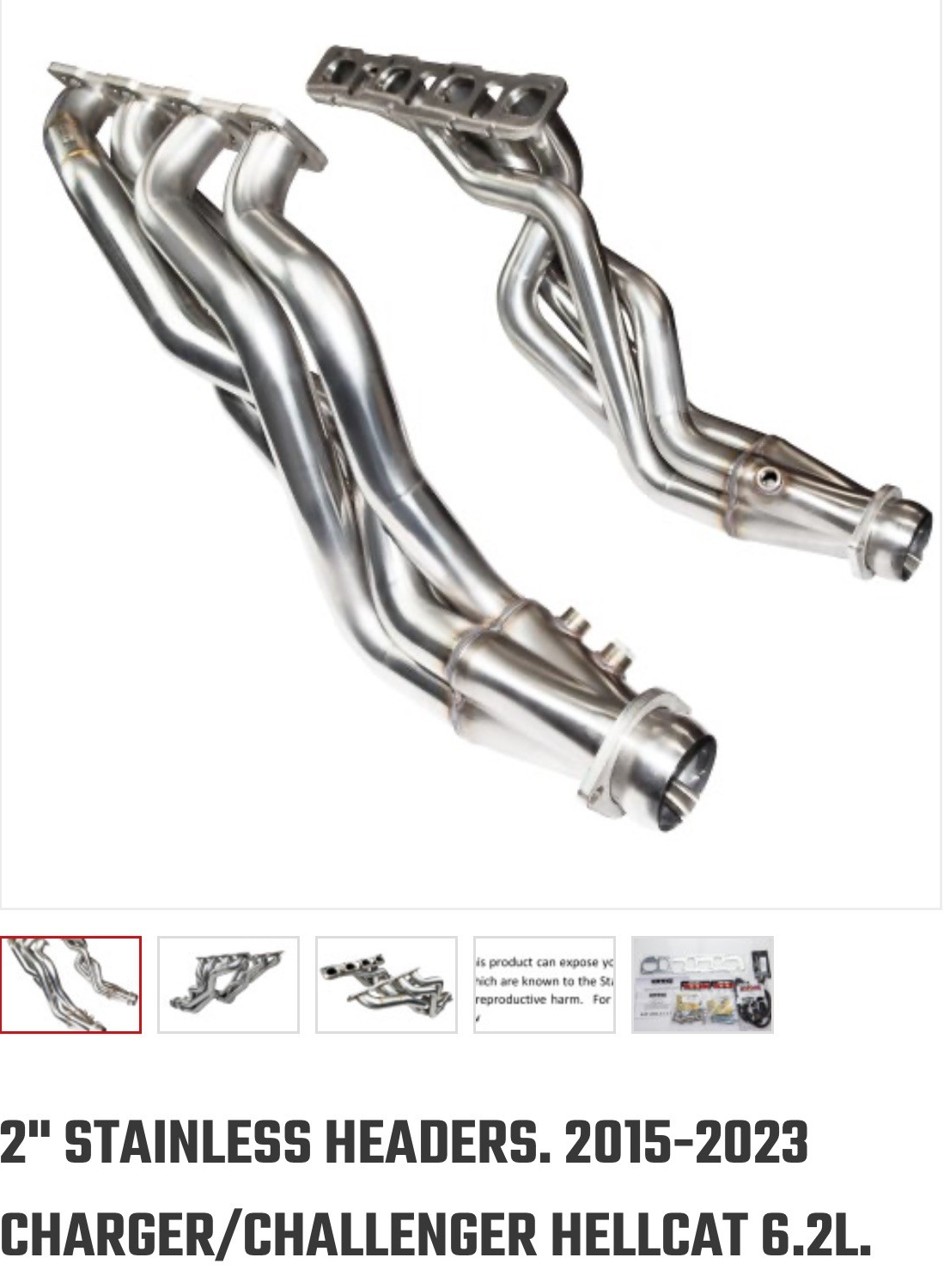

Headers for the Hellcat have arrived.

A pair of long-tube headers are shown.
